Features

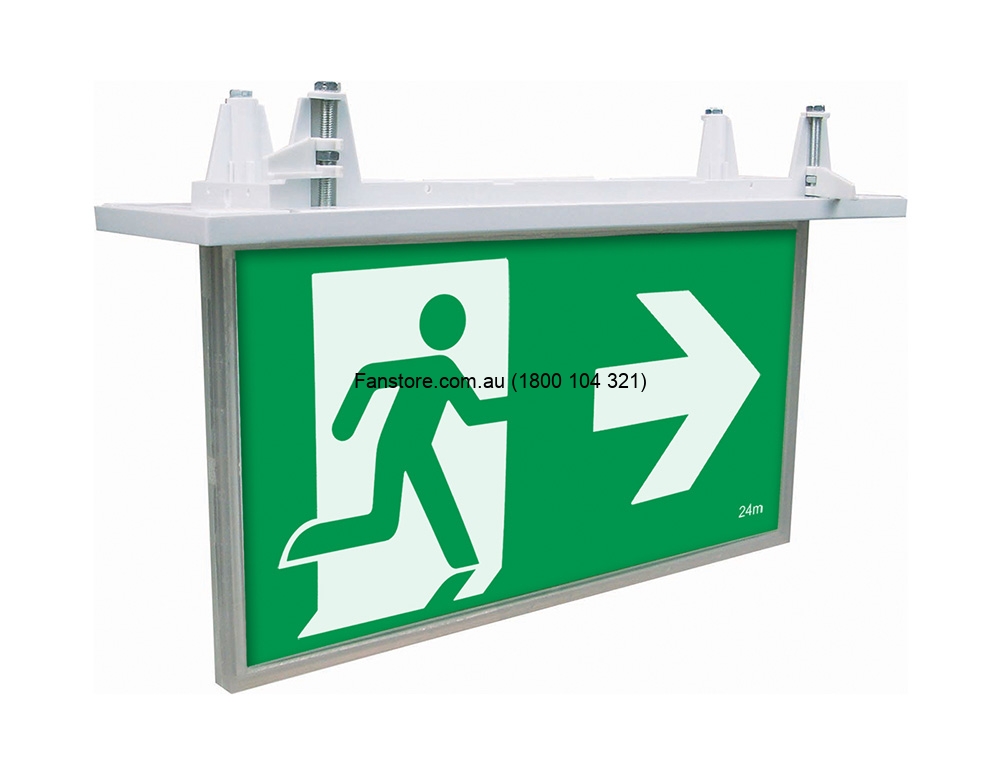

The Blade is a stylish Exit Sign ideal for emergency lighting application where aesthetics are everything.

Double or single-sided interior recessed mounted exit sign for use at doorway, stairways and corridors and intersection on an emergency escape route.

The Blade incorporates an integral emergency 2 hour battery pack that permits self-powered operation during power outages.

Applications
Commercial office areas, hotels, shopping centres, apartments & hospitals

Specifications
- Compliant to AS/NZS 2293
- 50,000 Hour average life rated LED modules
- Recessed & Surface mount options
- Injection moulded polycarbonate housing and acrylic diffuser with pictogram legends
- Viewing distance 24M
- High density storage LiCoO2 batteries
- Diffuser & pictogram inserts included
- IP20 rating
- Additional 1W Non-Maintained downlight during mains power outage
- Fully tested & compliant with Australian Standards
- 2 Hour duration period
- TA40 - maximum thermal ambient operating temperature
- Charger type: Trickle
- Charger time: 16 Hours
- Charger operation: Continuous

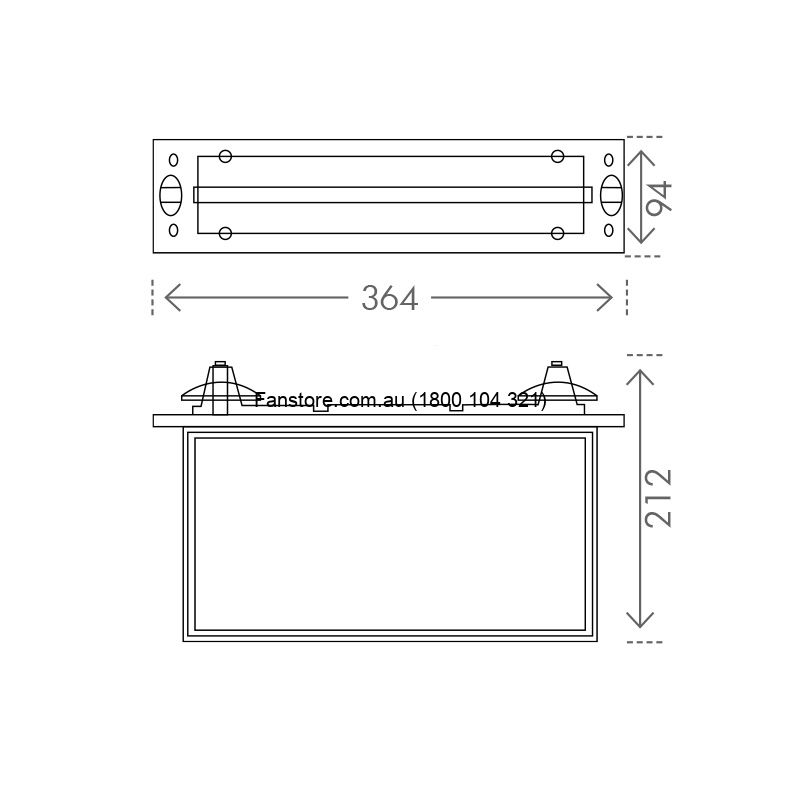

Dimensions
- Width: 364mm
- Height: 212mm
- Depth: 94mm
