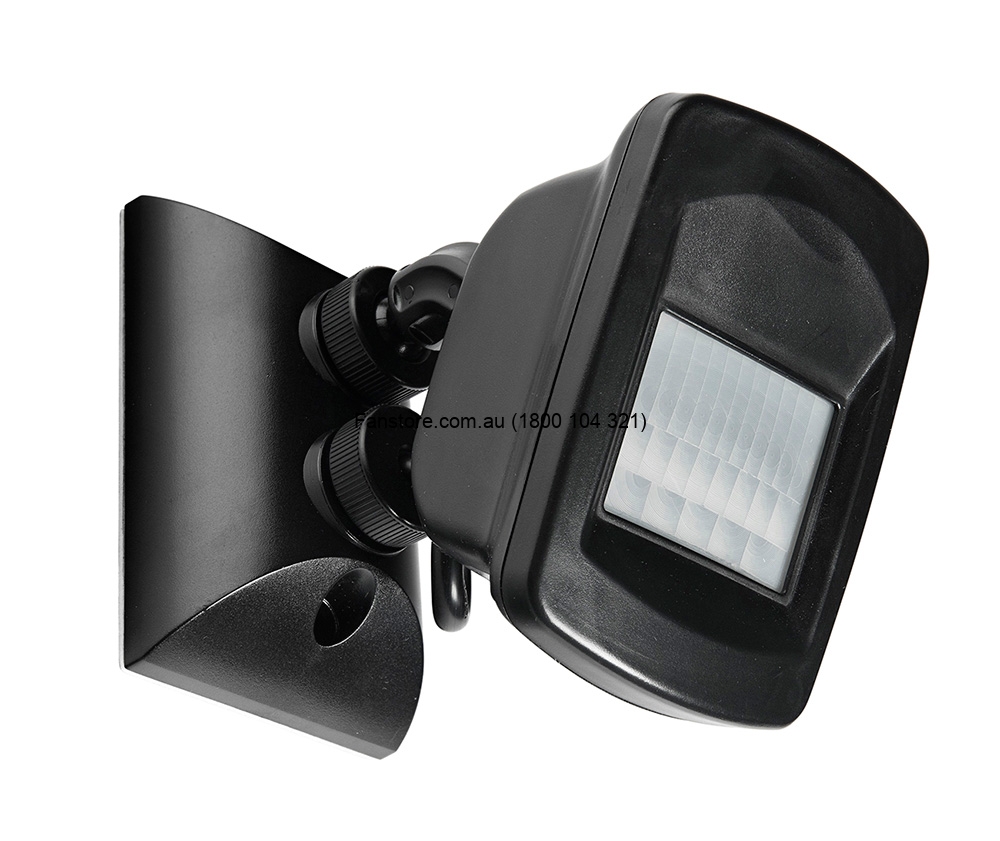

Brilliant Lighting Flexiscan PIR Security Sensor Black - 18562/06

Brilliant Lighting
$48.58
10 days
18562/06
+ −
Or use
Features
The Flexiscan Series II 110° PIR Security Sensor is suitable for installations on the wall or ceiling with Adjustable settings.

Specifications
- LED Compatible
- Passive Infra-red technology
- Multi-segmented optical lens for better detection
- 3-Wire design for greater reliability
- IP66 Weather-resistant Rated
- Wall or ceiling installation
- Heavy duty switching circuitry, suitable for large loads
- Easy to mount
- Manual Override
- Detection Scan: 110°
- Max Load: 2400W Incandescent lamp
- Max Load: 1200W Fluorescent lamp
- Max Load: 600W LED lamp
- Power consumption: 0.7W
- Operating Temp: -5 to 45 degrees Celsius
- 5-Year Warranty

Dimensions
- Backplate: 115mm x 73mm
- Front: 110mm x 80mm
- Projection: 155mm

Manufacturer
:
Brilliant Lighting

Catalog (Flexiscan-Datasheet.pdf, 1,060 Kb) [Download]
