Brilliant Lighting Newton Quattro 3-In-1 Bathroom Heat Light Exhaust Fan

$103.18
(Including tax)
10 days
20352/05
+

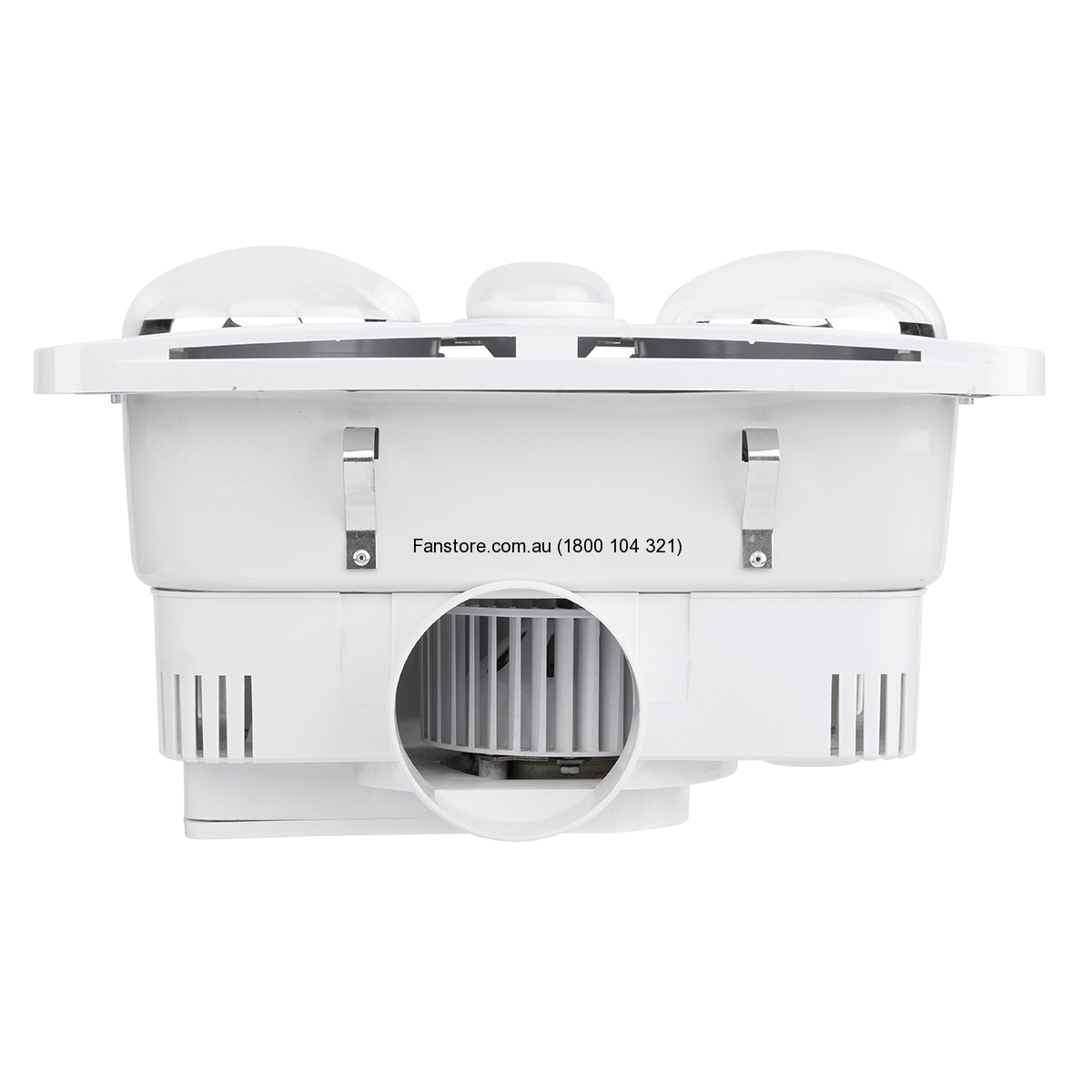

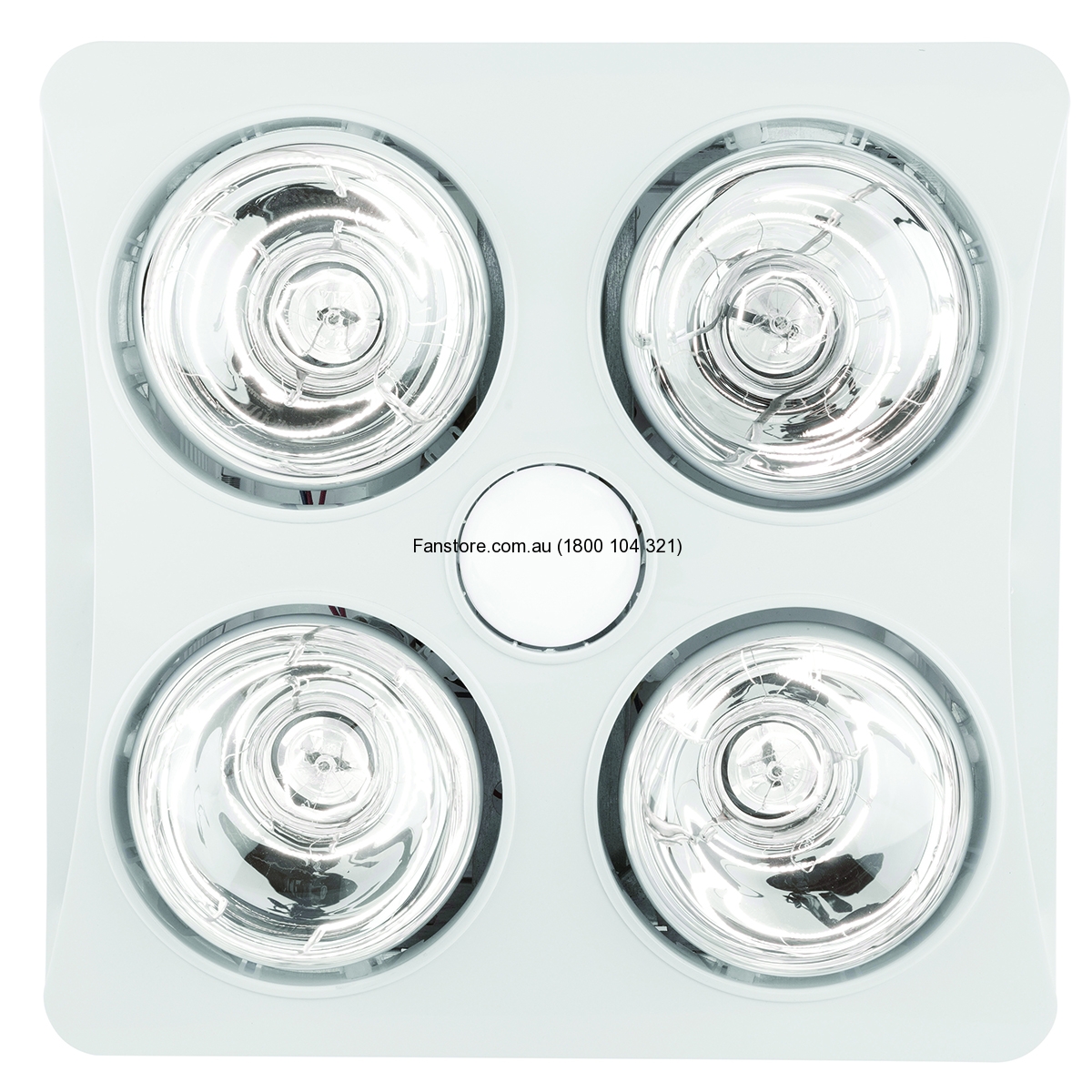

Brilliant Lighting Newton Quattro 3-In-1 Bathroom Heat Light Exhaust Fan

3-in-1 Bathroom Mate feature an energy saver LED reflector globe, 275W infra-red heat globes and an exhaust fan.
4+1 model is designed to suit small to medium bathrooms with a maximum ceiling height of 2.4m.
Units are fitted with a thermostat switch that will automatically turn on if the internal temperature exceeds 80°C.

Includes 3 or 4 gang wall switch, 1.5m ducting and exterior vent.

SIZE: 4+1 Light
COLOUR/S: White only
WATTAGE: 9W max
LAMP: R63 LED
COLOUR TEMP: 4200K
CUT-OUT SIZE: 295x295mm
WARRANTY: 3-Year
HEAT TYPE: R125 Globes
WATTAGE: 275W max

EXHAUST : Up to 67L/sec

Material
:
  • Metal & abs plastic
Voltage Input
:
240v AC
Warranty
:
2 Year Australia wide in home warranty
Manufacturer
:
Brilliant Lighting

Globe Product Details

Average Life (hours)
:
1000 Hr
Colour temperature
:
Warm White 2700k
Dimmable
:
No
Globe Base
:
Edison Screw (E27)
Globe Shape
:
R80

Specifications Exhaust

Back Draft Stopper
:
Yes
Cut Out Size
:
295mm x 295mm
Decibel Rating
:
<45dB
Depth
:
175mm
Duct Outlet Diameter
:
100mm
Ducting Included
:
Yes
Exhaust Type
:
Ball Bearing
Facia Size
:
362 x 362
Heat Type
:
4 x 275w
Light Type
:
R63 LED
Side Ducted
:
Yes

Newton Bathroom Heater (Newton-4-Lamp-Bathroom-Mate-Datasheet.pdf, 902 Kb) [Download]
